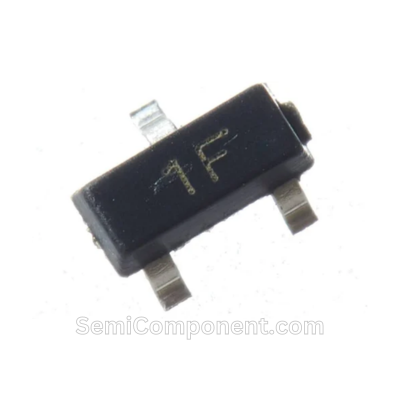

BC847 NPN Transistor 45V 100mA SOT-23 | 1F SMD Transistor

Original price was: ₹1.200.Current price is: ₹0.680. (Excl. GST)

BC847 NPN Transistor 45V 100mA SOT-23 is a general purpose NPN transistor with 100mA collector current and 45V Collector Emitter Voltage. BC847 is in SOT-23 package.

In stock

Description
About BC847 NPN Transistor 45V 100mA SOT-23:

BC847 is a bipolar general purpose npn transistor with 45V Collector Emitter Voltage, 50V Collector Base Voltage, 6V Emitter base Voltage with 100mA of Collector current. BC847 comes with SOT-23 package. It is good alternate to BC856, BC857, BC858 etc.

Features:

  • Switching and Amplifier Applications
  • Suitable for Automatic Insertion in Thick and Thin-film Circuits
  • Low Noise: BC850
  • Complement to BC856, BC857, BC858, BC859, and BC860

Specification:

  • Type: General Purpose
  • Polarity: NPN
  • Mount Type: SMD/SMT
  • Package: SOT-23
  • Pin: 3
  • VCBO – Collector-Base Voltage: 50V
  • VCEO – Collector-Emitter Voltage: 45V
  • VEBO – Emitter-Base Voltage: 6V
  • IC – Collector Current (DC): 100mA
  • ICBO – Collector Cut-Off Current: 15nA

BC847 SOT-23 Pinout:

BC847 NPN Transistor 45V 100mA SOT-23 Pinout



Click Here for more Transistors.

Click Here for Datasheet.

Additional information
Weight 0.0001 g
Dimensions 0.5 × 0.5 × 0.2 cm
Brand

Generic (Any Brand)

Mount Type

SMD/SMT

Package

SOT-23

Shipping

Conditional

HSN Code

85412900
