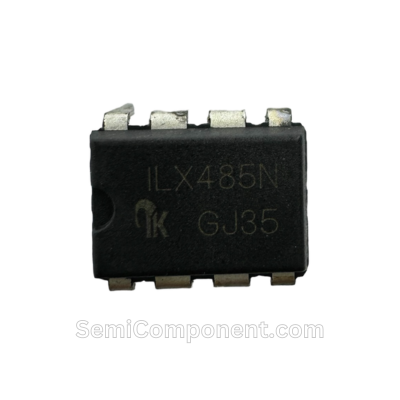

ILX485 RS485 to UART Converter IC DIP8

ILX485 RS485 to UART Converter IC DIP8

Original price was: ₹60.000.Current price is: ₹40.000. (Excl. GST)

ILX485 RS485 to UART Converter IC DIP8 is low-power transceivers for RS-485 and RS- 422 communication. Good Alternative for MAX485 or SN75176.

Description
About ILX485 RS485 to UART Converter IC DIP8:

The ILX485 is low-power transceivers for RS-485 and RS- 422 communication. IC contains one driver and one receiver. The driver slew rates of the ILX485 is not limited, allowing them to transmit up to 10 Mbps. These transceivers draw between 120µA and 500µA of supply current when unloaded or fully loaded with disabled drivers. All parts operate from a single 5V supply.

Drivers are short-circuit current limited and are protected against excessive power dissipation by thermal shutdown circuitry that places the driver outputs into a highimpedance state. The receiver input has a fail-safe feature that guarantees a logic-high output if the input is open circuit. The ILX485 is designed for half-duplex applications.
ILX485 is also know as Rs485 to UART Converter as well as RS485 to TTL Converter.

Features:

  • Low Quiescent Current: 300µA
  • -7V to +12V Common-Mode Input Voltage Range
  • Three-State Outputs
  • 50ns Propagation Delays, 5ns Skew
  • Half-Duplex Version Available
  • Operate from a Single 5V Supply
  • Allows up to 32 Transceivers on the Bus
  • Data rate: 10 Mbps
  • Current-Limiting and Thermal Shutdown for Driver Overload Protection
  • Enhanced ESD Specifications: ±15kV IEC61000-4-2 Air Discharge ±8kV IEC61000-4-2 Contact Discharge

ILX485 is similar to MAX485. ILX485 is similar to MAX485.

ILX485 RS485 to UART Converter IC DIP8

Package: DIP8
Operating Voltage: 5V DC

Click Here for Datasheet.

Click Here for ILX485 Pinout.

Additional information
Weight 0.005 g
Dimensions 1.5 × 1.5 × 1.5 cm
