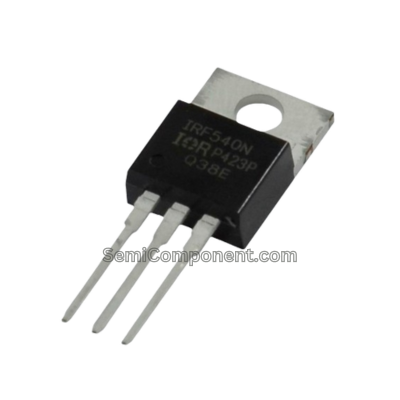

IRF540N N Channel Power MOSFET TO-220

The IRF540N is also a power MOSFET manufactured by Infineon Technologies, but unlike the IRF530N, it’s a N-channel MOSFET. P-channel MOSFETs turn on when a negative voltage is applied to the gate relative to the source.

Here’s a breakdown of its features similar to the IRF530N:

• Type: N-channel MOSFET
• Voltage: 100V
• Current: 33A maximum continuous drain current (Id)
• Package: TO-220 Through Hole

Applications:

• Widely used in  DC motors, inverters, switching power supplies (SMPS), lighting circuits, and load switches.
• Due to its N-channel nature, it can be used in different circuit configurations compared to P-channel MOSFETs.

Additional Points:

• IRF540N is known for its low on-resistance which translates to lower conduction losses and higher efficiency in circuits.
• It has a higher current rating 33A making it suitable for higher-power applications.

Manufacturer: Infineon Technologies
Manufacturer Part Number (MPN): IRF9540N
