LM2596ADJ Step Down Switching Regulator TO263-5 pin package with 5V fixed output Voltage and Support up to 3A output current. TO-263-5 is 5 Pin SMD Package.
-36%

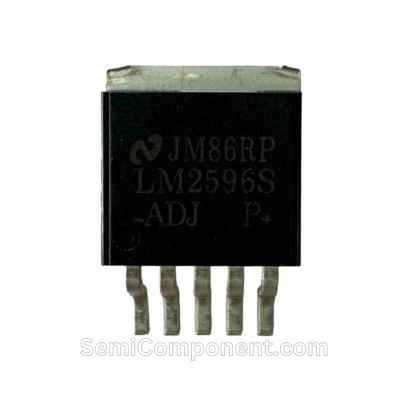

LM2596ADJ Step Down Switching Regulator TO263-5
Original price was: ₹35.000.₹22.500Current price is: ₹22.500. (Excl. GST)
In stock
Description
About LM2596ADJ Step Down Switching Regulator TO263-5:
The LM2596 series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving a 3-A load with excellent line and load regulation. This variant is Adjustable output voltage which can be in range of 1.2V to 37V.
LM2596 requiring a minimum number of external components, these regulators are simple to use and include internal frequency compensation, and a fixed frequency oscillator. The LM2596 series operates at a switching frequency of 150 kHz, thus allowing smaller sized filter components than what can be required with lower frequency switching regulators. Available in a standard 5-pin TO-263 surface mount package.
Feature:
- Low power standby mode, IQ, typically 80 μA
- High efficiency
- Requires only four external components
- Excellent line and load regulation specifications
- 150-kHz fixed-frequency internal oscillator
- Thermal shutdown and current-limit protection
- Uses readily available standard inductors
Specification:
- Package: TO-263-5 (5 Pin TO-263)
- Mount Type: SMD/SMT
- Output Voltage: DC 1.2V to 37V
- Output Current: DC 3A Max.
- Input Voltage: DC 40V Max.
LM2596 Pinout:
Click Here for the Refrence Schematics.
Click Here for the Data Sheet.
Click Here for the Voltage Regulators.
Additional information
| Weight | 0.005 g |
|---|---|
| Dimensions | 2 × 2 × 2 cm |
| Brand | Generic (Any Brand) |
| Mount Type | SMD/SMT |
| Package | TO-263-5Pin |
| Shipping | Conditional |
| HSN Code | 85423100 |
