LM7805 5V Liner Voltage Regulator IC TO220 is fix output voltage linear regulator with TO220 3 pin package with 1A maximum output current. L7805 is wisely used regulator across embedded systems.
-34%

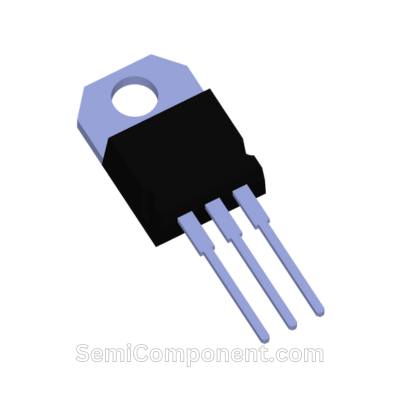

LM7805 5V Liner Voltage Regulator IC TO220
Original price was: ₹15.000.₹9.850Current price is: ₹9.850. (Excl. GST)
In stock
Description
About LM7805 5V Liner Voltage Regulator IC TO220:
The L78 series of three-terminal positive regulators is available in TO-220, TO-220FP, D²PAK and DPAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type embeds internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.
Features:
-
- Output current up to 1.5 A
- Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18; 24 V
- Thermal overload protection
- Short circuit protection
- Output transition SOA protection
- 2 % output voltage tolerance (A version)
- Guaranteed in extended temperature range (A version)
Click Here for LM7805 5V Liner Voltage Regulator IC TO220 Datasheet.
Click Here for the Voltage Regulators.
Reference Circuit Design:
Additional information
| Weight | 0.005 g |
|---|---|
| Dimensions | 3.7 × 1.05 × 0.5 cm |
| Brand | ST Microelectronics |
| Mount Type | Through Hole |
| Package | TO-220 |
| Shipping | Conditional |
| HSN Code | 85423100 |
