NE555 Precision Timer IC DIP8
NE555 Precision Timer IC DIP8

NE555 Precision Timer IC DIP8

Original price was: ₹20.000.Current price is: ₹8.000. (Excl. GST)

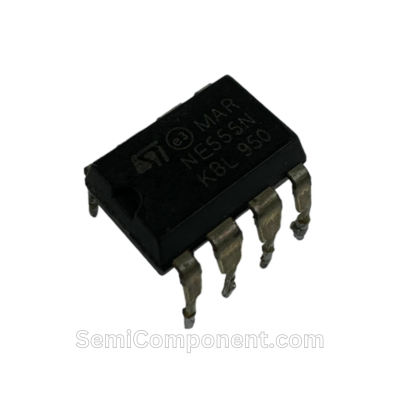

NE555 Precision Timer IC DIP8 is a popular integrated circuit (IC) widely used for generating accurate timing pulses and oscillations which comes with DIP8 package. NE555 Timer IC Through Hole.

In stock

Description
About NE555 Precision Timer IC DIP8:

This precision timer IC is widely used across electronics product to generate various clock signal for various application. It can easily integrate with any driver circuits due to its high output sink or source current. Its timing can be adjust using RC circuit which mainly consist of resistor and capacitor. This timer ic can use in 2 different mode which are monostable and astable operation.

NE555 Precision Timer IC DIP8 is a popular integrated circuit (IC) widely used for generating accurate timing pulses and oscillations. It’s known for its ease of use, versatility, and affordability, making it a go-to component for various electronic applications.

Package: DIP8

Key Features:

  • Timing From Microseconds to Hours
  • Astable or Monostable Operation
  • Adjustable Duty Cycle
  • TTL-Compatible Output Can Sink or Source up to 200mA

Formula:

  • Monostable
    T = 1.1 * R1 * C1  –  Here Output represents the on time of high pulse.
    Click Here for Details Circuit Diagram for Monostable mode of NE555.
    Click Here for Detailed Tutorial on Monostable mode of NE555.
  • Astable
    Ton = 0.693 * (R1 + R2) * C1
    Toff = 0.692 * R2 * C1
    Freq = 1.44 / ( ( R1 + (2 * R2) ) * C1) or Duty Cycle =
    Click Here for details circuit diagram for Astable mode of NE555.
    Click Here for Detailed Tutorial on Astable mode of NE555.

Applications:

  • Timer circuits (delays, timeouts)
  • Flashing LEDs (e.g., blinking lights)
  • Pulse-width modulation (PWM) for controlling motors, LEDs (brightness)
  • Voltage-to-frequency conversion
  • Logic circuits (tone generation, timers in games)



Brand STMicroelectronics
Manufacturing Part Number (MPN) NE555N
Mount Type Through Hole
Package DIP8
Sink / Source Current upto 200mA
Mode Astable & Monostable
Datasheet Link

Click Here for Various ICs.

Click Here for NE555 Precision Timer IC DIP8 Datasheet.

Additional information
Weight 0.005 g
Dimensions 1 × 1 × 1 cm
Brand

ST Microelectronics
Mount Type

Through Hole
Package

DIP-8
Shipping

Conditional
HSN Code

85429000
