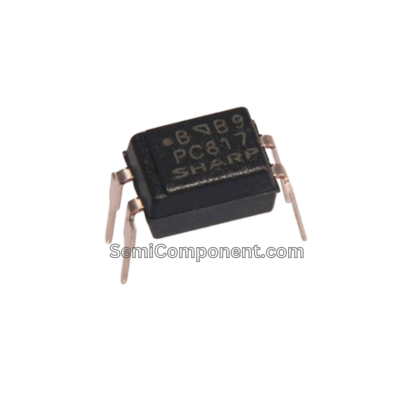

PC817 Optocoupler Through Hole DIP-4

About PC817 Optocoupler Through Hole DIP-4:

The PC817 is a popular optocoupler, also known as an optical coupler or isolator, that provides electrical isolation between two circuits. It achieves this by using an LED (light-emitting diode) to transmit light to a phototransistor on the other side of the device. This isolation barrier prevents high voltages or transients on one side of the circuit from affecting the other side.

Key Features of PC817 Optocoupler Through Hole – DIP-4:

• High isolation voltage (4000 V Peak)
• High-speed switching (400 kHz)
• Industry-standard DIP-4 package
• Through-hole mounting for easy assembly
• Low power consumption

Benefits of PC817 Optocoupler Through Hole – DIP-4:

• Protects sensitive circuits from high voltages or transients
• Allows for safe signal transmission between circuits with different ground potentials
• Improves noise immunity
• Simplifies circuit design

Applications of PC817 Optocoupler Through Hole – DIP-4:

• AC/DC power supplies
• IGBT/SCR drivers
• Logic level shifters
• Medical equipment
• Industrial control systems

Typical Applications:

• Driving relays or solenoids
• Isolating gate drive signals in power converters
• Isolating digital input/output signals

Click Here for the Datasheet. (Note this datasheet is for refrence not represent the exact manufacturer.)

Click Here for Refrence Schematics.

Click Here for other optocouplers.
