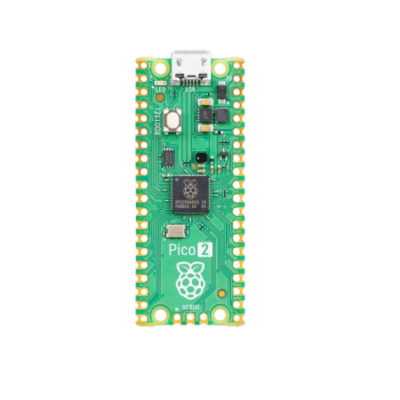

Original Raspberry Pi Pico 2 RP2350 Based MCU Board

About Original Raspberry Pi Pico 2 RP2350 Based MCU Board:

With a higher core clock speed, double the memory, more powerful Arm cores, optional RISC‑V cores, new security features, and upgraded interfacing capabilities, Raspberry Pi Pico 2 delivers a significant performance boost, while retaining compatibility with earlier members of the Raspberry Pi Pico series.

Programmable in C / C++ and Python, and with detailed documentation, Raspberry Pi Pico 2 is the ideal microcontroller board for enthusiasts and professional developers alike.

Original Raspberry Pi Pico 2 RP2350 Based MCU Board is powered by RP2350, our new high-performance, secure microcontroller. Every aspect of the design has been upgraded, from the CPU cores to our unique PIO interfacing subsystem. We’ve introduced a comprehensive security architecture, built around Arm TrustZone for Cortex-M. And new low-power states and package options expand the range of addressable applications.

The unique dual-core, dual-architecture capability of RP2350 allows users to choose between a pair of industry-standard Arm Cortex-M33 cores, and a pair of open-hardware Hazard3 cores, giving developers a chance to experiment with the RISC‑V architecture in a stable, well-supported environment.

Specification:

• • Dual Arm Cortex-M33 or dual Hazard3 processors @ 150MHz
  • 520 KB on-chip SRAM
  • Software- and hardware-compatible with Raspberry Pi Pico 1
  • Drag-and-drop programming using mass storage over USB
  • Castellated module allows soldering direct to carrier boards
  • Robust and fully documented security features:
    • • Optional boot signing, enforced by on-chip mask ROM, with key fingerprint in OTP
      • Protected OTP storage for optional boot decryption key
      • Global bus filtering based on Arm or RISC-V security/privilege levels
      • Peripherals, GPIOs, and DMA channels individually assignable to security domains
      • Hardware mitigations for fault injection attacks
      • Hardware SHA-256 accelerator
  • 2 × UART
  • 2 × SPI controllers
  • 2 × I2C controllers
  • 24 × PWM channels
  • 4 x ADC channels
  • 1 × USB 1.1 controller and PHY, with host and device support
  • 12 × PIO state machines
  • Open source C/C++ SDK, MicroPython support
  • Operating temperature -20°C to +85°C
  • Supported input voltage 1.8–5.5V DC

Documentation:

• • Raspberry Pi Pico 2 product brief
  • Raspberry Pi Pico 2 MicroPython SDK
  • Raspberry Pi Pico 2 C/C++ SDK
  • Official Raspberry Pi Pico 2 RP2350 Based MCU Board Page
