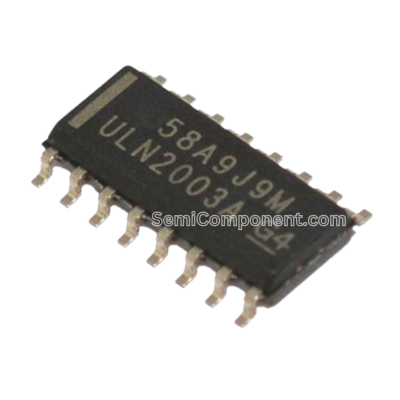

ULN2003 NPN Darlington Transistor Array SOP-16 | ULN2003 SMD IC

About ULN2003 NPN Darlington Transistor Array SOP-16:

The ULN2003 NPN Darlington Transistor Array SOP-16 is a versatile, high-current, high-voltage transistor array designed for driving loads in a wide range of electronic applications. This ULN2003 SMD IC is a surface-mount device with a compact SOP-16 package, offering efficient integration into modern PCB designs while delivering high performance and reliability.

Widely used in industrial automation, robotics, control systems, and hobby electronics, the ULN2003 provides seven open-collector Darlington pairs with high-voltage outputs and common-cathode flyback diodes. This makes it ideal for driving inductive loads such as relays, stepper motors, solenoids, and lamps with minimal external components.

The ULN2003 SMD IC is built to deliver dependable performance in compact designs. The SOP-16 package offers easy surface mounting, improved heat dissipation, and compatibility with automated assembly processes, making it perfect for both prototype and production environments in India.

Key Features

• Type: ULN2003 NPN Darlington Transistor Array

• Package: SOP-16 Surface Mount

• Seven NPN Darlington pairs with high-voltage outputs

• Output current capability: up to 500 mA per channel

• Output voltage up to 50V

• Built-in flyback diodes for driving inductive loads

• Low input current for TTL and CMOS compatibility

• Compact SOP-16 package for easy PCB integration

• Wide operating voltage range

• Low standby power consumption

Applications

The ULN2003 NPN Darlington Transistor Array SOP-16 is perfect for a variety of applications, including:

• Driving relays, solenoids, and stepper motors

• LED display and lamp driving

• Industrial automation and control systems

• Robotics and CNC machine control

• Microcontroller and PLC interfacing

• Signal amplification and switching

• Home automation systems

• Educational electronics projects

Why Choose ULN2003 SMD IC?

The ULN2003 SMD IC is trusted worldwide for its robustness, efficiency, and ease of integration. It provides a simple solution for driving high-current loads without the need for complex circuit designs. The built-in flyback diodes protect connected devices from voltage spikes caused by inductive loads, increasing reliability and longevity.

In industrial applications, the ULN2003 ensures reliable switching of motors, relays, and solenoids, making it a key component in automation systems. For hobbyists and educational projects, the ULN2003 offers a straightforward way to interface microcontrollers with higher-power devices without additional driver circuits.

The SOP-16 package is a major advantage for modern PCB designs. It reduces board space requirements, improves thermal management, and allows for automated placement during manufacturing. This makes the ULN2003 NPN Darlington Transistor Array SOP-16 ideal for both high-volume production and small-scale electronics projects.

Benefits of ULN2003 SMD IC

• High Current Capability: Can drive loads up to 500 mA per channel.

• Integrated Flyback Protection: Protects components from voltage spikes in inductive loads.

• Compact Package: SOP-16 saves space and supports automated assembly.

• Versatility: Suitable for various loads, including relays, motors, lamps, and LEDs.

• Easy Integration: Compatible with TTL and CMOS logic for simple interfacing.

• Reliability: Stable operation over a wide voltage range with low standby power.

Summary

The ULN2003 NPN Darlington Transistor Array SOP-16 is a high-quality, reliable, and efficient solution for driving high-current loads in compact designs. Its combination of seven Darlington pairs, built-in flyback diodes, and a compact SOP-16 package makes it ideal for a wide range of applications, from industrial automation to hobby electronics in India.

Whether you are designing a robotics control system, an automation module, or a prototype PCB, the ULN2003 SMD IC offers the performance, durability, and ease of integration you need. This transistor array is trusted by engineers and hobbyists alike for its robust capabilities and cost-effectiveness, making it a staple in electronics design.

Choose the ULN2003 NPN Darlington Transistor Array SOP-16 for reliable, compact, and efficient high-current load control in your projects.

Manufacturing Part Number (MPN): ULN2003
Package: SOP-16
Pins: 16
