The IRF530N Power MOSFET N Channel TO-220 is designed and optimized for applications switching below <100kHz. It is widely used in Driver applications like Motors, Lighting & Battery.
-21%

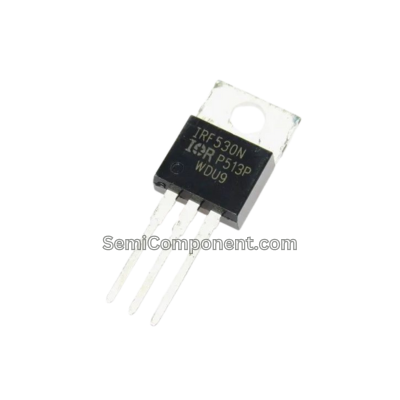

IRF530N Power MOSFET N Channel TO-220
Original price was: ₹40.000.₹31.500Current price is: ₹31.500. (Excl. GST)
In stock
Description
About IRF530N Power MOSFET N Channel TO-220 :
The IRF530N is a 100V single N-channel MOSFET in a TO-220 package, used in power MOSFETs. It’s designed by Infineon Technologies and is used in applications like DC motors, lighting, and battery-powered applications. N-channel MOSFETs turn on when a positive voltage is applied to the gate relative to the source.
The IRF530N has the following features:
- Planar cell structure for wide SOA
- Optimized for the broadest availability from distribution partners
- Product qualification according to JEDEC standard
- Silicon optimized for applications switching below <100kHz
- Package: TO-220
- Pins: 3
Silicon optimised for applications switching below <100kHz
Manufacturer: Infineon Technologies
Manufacturer Part Number (MPN): IRF530N
Click Here for More MOSFETs.
Click Here for the Datasheet.
| Feature | IRF530N |
|---|---|
| Channel Type | N-Channel |
| Gate Voltage for Turn On | Positive |
| Maximum Drain-Source Voltage (Vds) | 100V |
| Continuous Drain Current (Ids) | 17A |
| Drain-Source On Resistance (Rds(on)) | 90 mΩ |
| Threshold Voltage (Vth) | 2V to 4V |
| Pulse Drain Current (IDM) | 102A |
| Package | TO-220 |
Additional information
| Weight | 0.012 g |
|---|---|
| Dimensions | 2 × 1 × 0.5 cm |
| Brand | Infineon |
| Package | TO-220 |
| Mount Type | Through Hole |
| Shipping | Conditional |
| HSN Code | 85412900 |
